FGV - Quality Drawer Systems and Cabinet Hardware

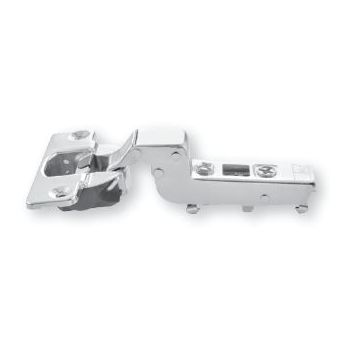

FGV hinge, Omnia 110° soft-close, cr15/inset

FGV OMNIA 110° soft-close inset hinge for fast & easy AnyClick mounting
Features:
Opening angle 110°, perfect for standard cabinets
Suitable for 16-26mm thick doors.
Cup diameter 35mm, cup depth 12.4mm
Right / left adjustment +2/-3mm, depth adjustment via cam +3/-2mm
To be mounted with OMNIA plates - choice of Screw-fix or pre-mounted Euro screw
Made in Italy

Details & Specifications

FGV hinge, Omnia 110° soft-close, cr15/inset
FGV OMNIA 110° soft-close inset hinge for fast & easy AnyClick mounting
Opening angle 110°, perfect for standard cabinets
Suitable for 16-26mm thick doors.
Cup diameter 35mm, cup depth 12.4mm
Right / left adjustment +2/-3mm, depth adjustment via cam +3/-2mm
To be mounted with OMNIA plates - choice of Screw-fix or pre-mounted Euro screw
Made in Italy

Specifications

  • Artia Part FGV OMNIA 110 SC CR15
  • Brand FGV - Quality Drawer Systems and Cabinet Hardware
  • Type Soft-close hinge
